    2.5 Ton Four Wheel Electric Forklift Truck Company CPD20J CPD25J

    Ask Lasest Price
    Brand Name : JAC FORKLIFT
    Model Number : Electric Forklift Truck
    Certification : CE/SGS/ISO 9001/ISO 14001/SGS
    Payment Terms : other
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

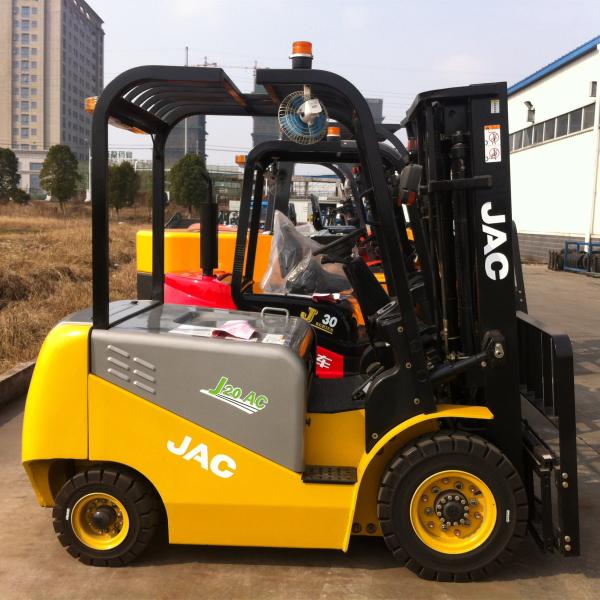

    2.5 Ton Four Wheel Electric Forklift Truck Company CPD20J CPD25J


    Electric Forklift (2.5T Four Wheel Forklift, H Series) / with AC Motor



    Product description


    The electric forklift of H series employs asymmetric drive axle, to leave enough space for the installation of the travel motor. So, the motor replacement and maintenance can be completed easily, without troublesome dismantling of the gear box and drive axle. This design has been granted the national patent.

    Features

    1. The steering axle of the 1-1.8T four wheel forklift offers big turning angle to reduce the turning radius and enhance the trafficability of the electric forklift. The patented technology makes this product quite popular.

    2.Iron cover for the balance weight of the electric forklift has high strength and good resistance to crush.

    3. Thanks to the LCD instrument panel with good resistance to water and vibration from CURTIS, the important information can be displayed on the screen completely, enabling the user to understand the working conditions of the material handling equipment timely and precisely.

    4. This range of product is installed with CURTIS accelerator. According to ergonomics, the foot brake pedal is designed slightly higher than the accelerator.

    5.Imported AMP connector to ensure high reliability of the electrical circuit.


    Technical Parameters of Diesel Forklift

    ModelUnitCPD20JCPD25J
    Powe typeBattery
    Rated loadkg2000
    Load center distancemm500
    Lift heightmm3000
    Fork sizemm1070×122×40
    Minimum turning radiusmm2200
    Maximum travel speed/Full loadkm/h12
    Maximum travel speed/No load13
    Fork height at maximum lift (with backrest)mm4030
    Standard Mast heightmm1995
    Front wheel7.00-12-12PR
    Rear wheel18×7-8-14PR
    Tread Front wheel/rear wheelmm973/960
    Self weight Without loadkg38504190
    Battery Voltage/capacityV/Ah48/60048/630
    Motor/TravelingKW11.1


    Related Information


    Brand: JAC

    Target Market: Global market

    Certificate: CE/SGS/ISO 9001/ISO 14001/SGS

    Production Capacity: 20,000 sets per year
