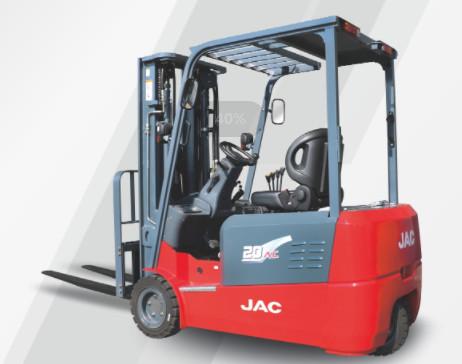

Electric Forklift (1.8T Wheel Counterbalance Battery Forklift)
Features
1. The lifting down cushion can reduce the impact to improve stability and safety.
2. Idling control system can prevent accidents caused by sudden start of the truck.
3. When the driver leaves the OPS seat, the whole vehicle does not work, ensuring the safety of driver and vehicle. The shock absorption and well upholstered seat makes the driving more comfortable.
4. The lift truck is equipped with LED lights with high brightness, featuring energy-saving and long lifespan.
5. High end control system and instruments enable stable
performance and convenient maintenance.
Technical Parameters of Diesel Forklift
| Model | Unit | CPD18SA3 | |
| Powe type | Battery | ||
| Rated load | kg | 1800 | |
| Load center distance | mm | 500 | |
| Lift height | mm | 3000 | |
| Fork size | mm | 1070×100×40 | |
| Minimum turning radius | mm | 1550 | |
| Maximum travel speed/Full load | km/h | 14 | |
| Maximum travel speed/No load | 14 | ||
| Fork height at maximum lift (with backrest) | mm | 3940 | |
| Standard Mast height | mm | 2070 | |
| Front wheel | 18×7-8 | ||
| Rear wheel | 15×4.5-8 | ||
| Tread Front wheel/rear wheel | mm | 918/180 | |
| Self weight Without load | kg | 3260 | |
| Battery Voltage/capacity | V/Ah | 48/500 | |
| Motor/Traveling | KW | 4.8×2 | |
