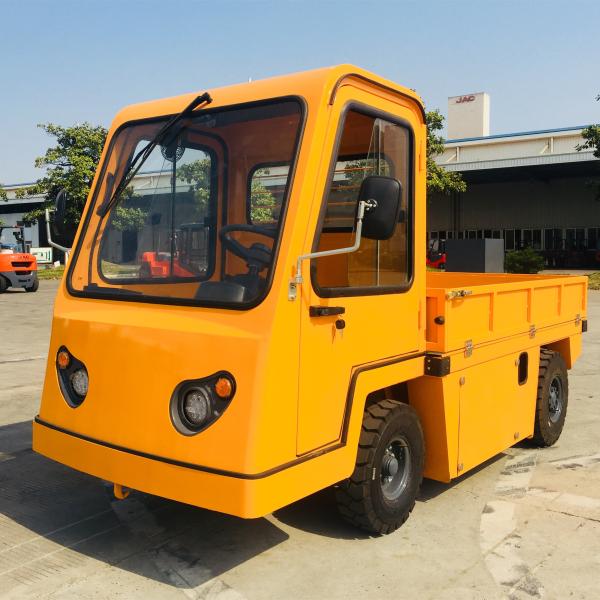

Electric Platform Truck / BDD10-30
Product description
Thanks for your interest in our electric platform truck. The
electric platform truck, usually used as an industrial towing
vehicle, is designed to balance the following contradicting
requirements, on the one hand it should feature compact size due to
narrow working aisles and other infrastructural bottlenecks, on the
other hand it should also provide a high towing capacity,
especially for use on ramps.
Features
1.JAC BDD10 electric platform truck is a piece of material handling
equipment that is built to provide great maneuverability,
reliability and ruggedness to meet all your demanding applications.
Featuring a 1T load capacity and 2610mm turning radius, our tow
tractor is widely used in general warehousing and manufacturing
industries.
2. As an established electric platform truck manufacturer in China,
we at JAC are dedicated to providing customers with high quality
tow tractors. Hence, we introduce the latest equipment, employ
highly trained staff and strictly manufacture our electric platform
trucks in accordance with ISO9001 standards. In order to fulfill
each of our customer's demands, we also offer other products such
as diesel forklifts, electric forklifts, electric stackers, and
more. Having the advantages of reliable quality and reasonable
prices, our products are sought after in Australia, India, Russia,
Philippines, Saudi Arabia, Italy, among other countries.
Technical Parameters of Diesel Forklift
| Model | Unit | BDD30 |
| Powe type | Battery | |
| Drive type | Seat type | |
| Rated load | kg | 3000 |
| Drawbar height | mm | 438/538 |
| Weight (with battery) | kg | 1750 |
| Platform size | mm | 2200×1400×755 |
| Overall length | mm | 3550 |
| Overall width | mm | 1400 |
| Overall height | mm | 1300 |
| Minimum turning radius | mm | 3800 |
| Minimum right angle aisle width | mm | 4000 |
| Maximum travel speed/Full load | km/h | 11 |
| Maximum travel speed/No load | 13 | |
| Tire type (FR/RR) | Pneumatic | |
| Front wheel | 6.00-9 | |
| Rear wheel | 6.50-10 | |
| Battery Voltage/capacity | V/Ah | 48/400 |
| Motor/Traveling | KW | 5.5 |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
