| Brand Name : | JAC |
| Model Number : | CDD20(Walkie/Heavy duty) |
| Certification : | CE/SGS/ISO 9001/ISO 14001/SGS |
| Payment Terms : | T/T |
| Supply Ability : | 5000 |
| Delivery Time : | 8 work days |

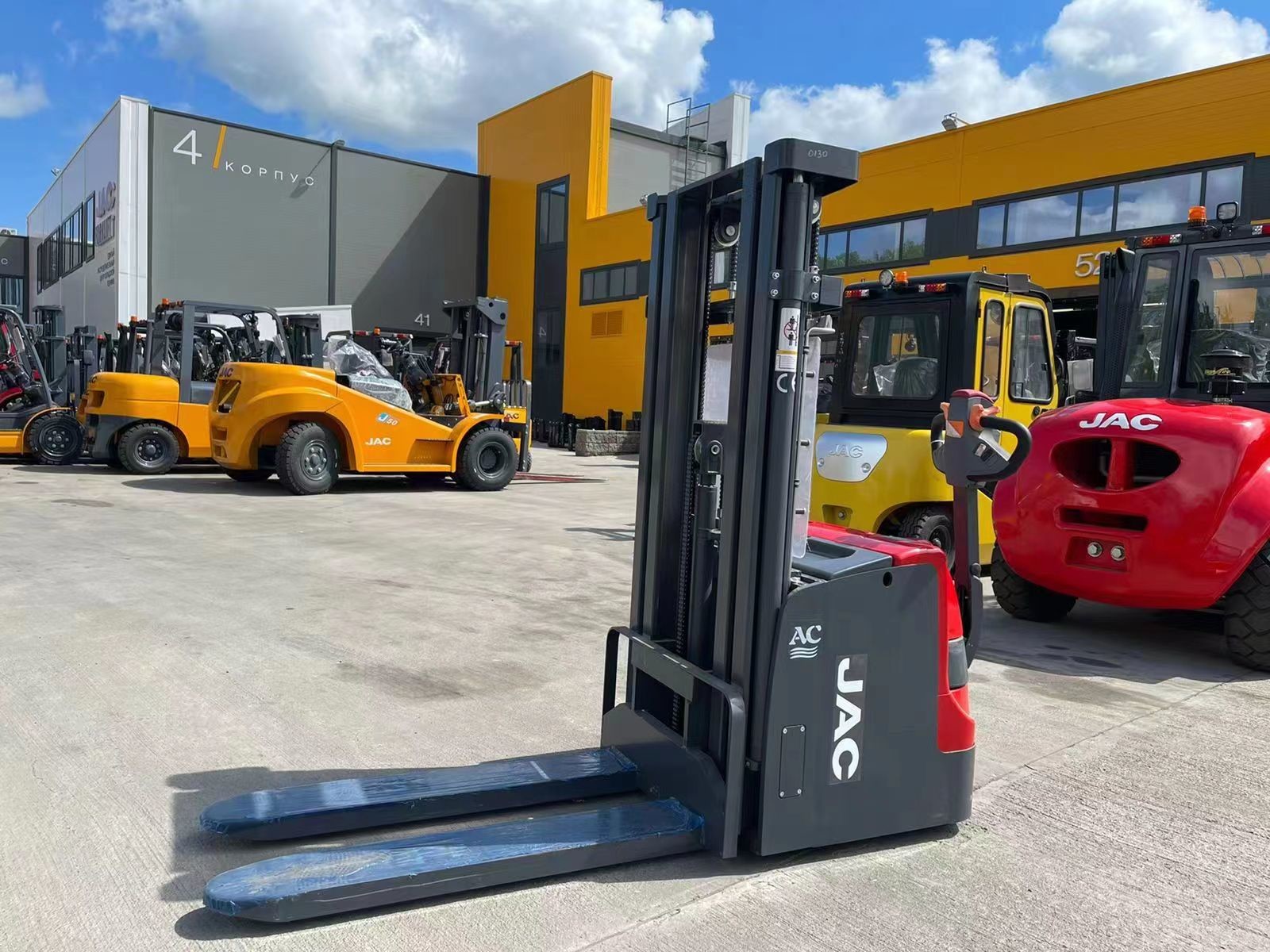

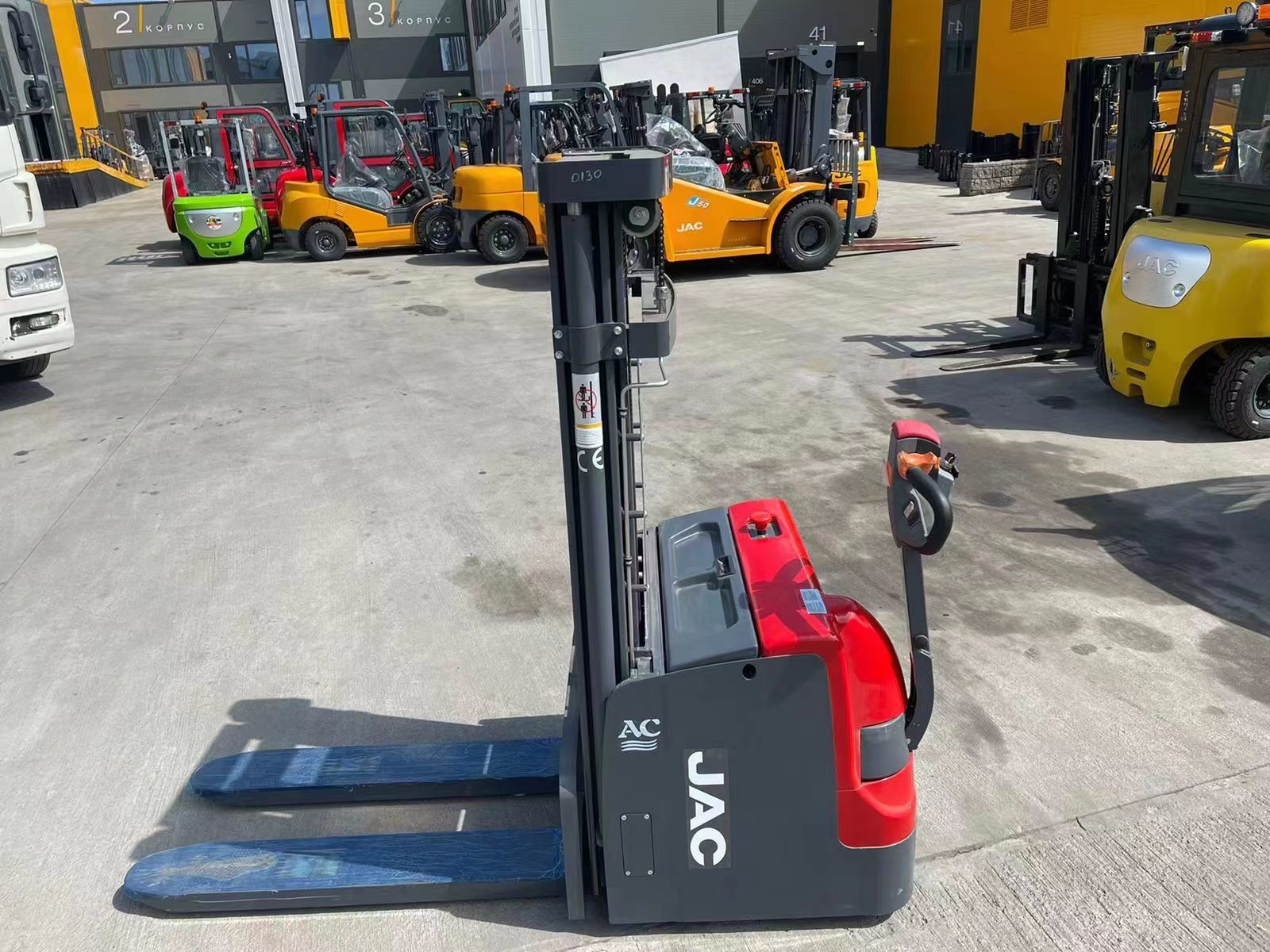

Heavy Duty Electric Pedestrian Stacker Double Pallet Rider 2 Ton
| Characteristics | 1.1 | Manufacturer | JAC | JAC |
| 1.2 | Model | CDD20 | CDD20 | |
| 1.3 | Power unit | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated traction weight | 2000 | 2000 | |
| 1.6 | Load centre | 600 | 600 | |
| 1.7 | Axle centre to fork face | 672 | 672 | |
| 1.8 | Wheel base | 1384 | 1384 | |
| Weights | 2.1 | Service weight with battery | 966 | 966 |
| Wheels/Tyres | 3.1 | Wheels type | PU | PU |
| 3.2 | Driving wheel size | Φ230×70 | Φ230×70 | |
| 3.3 | Bearing wheel size | Φ80×70 | Φ80×70 | |
| 3.4 | additional wheels(dimensions) | Φ150×58 | Φ150×58 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1x+1/4 | 1x+1/4 | |
| 3.6 | Track width | 526 | 526 | |
| 3.7 | Track width | 390/515 | 390/515 | |
| Dimensions | 4.1 | Height of mast, lowered | 1991 | 2167 |
| 4.2 | Free lift | 166 | 1733 | |
| 4.3 | Lift | 3000 (2-Stage Mast) | 5000 (3-Stage Full Free Mast ) | |
| 4.4 | The max. lifting height(mm) | 1400 | ||
| 4.5 | Height of mast, extended | 3408 | 5224 | |
| 4.6 | Overall height(With handle | 870/1200 | 870/1200 | |
| 4.7 | Lowered fork height | 86 | 86 | |
| 4.8 | Overall length | 2022 | 2022 | |
| 4.9 | Length to fork face | 872 | 872 | |
| 4.10 | Overall width | 795 | 795 | |
| 4.11 | Fork dimensions | 60/180/1150 | 60/180/1150 | |
| 4.12 | Width of forks | 570/695 | 570/695 | |
| 4.13 | Min.Ground clearance | 26 | 26 | |
| 4.14 | Aisle width with pallet 1000 x 1200 across forks | 2435 | 2435 | |
| 4.15 | Aisle width with pallet 800 x 1200 along forks | 2412 | 2412 | |
| 4.16 | Min.Turning radius | 1550 | 1550 | |
| Performance | 5.1 | Travel speed,laden/unladen | 4.0/4.2 | 4.0/4.2 |
| 5.2 | Lifting speed, with/without load | 80/210 | 80/210 | |
| 5.3 | Lowering speed, with/without load | 152/160 | 152/160 | |
| 5.4 | Maximum climbing ability, with/without load | 6/8 | 6/8 | |
| 5.5 | Service brake | Electromagnetic | Electromagnetic | |
| Drive | 6.1 | Drive motor, 60 minute rating | 1.5 | 1.5 |
| 6.2 | Lift motor rating at S3 15% | 3.0 | 3.0 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | no | |
| 6.4 | Battery voltage/rated capacity | 24/210 | 24/210 | |
| 6.5 | Battery weight (± 5%) | 195 | 195 | |
| Others | 7.1 | Type of drive control | CURTIS AC | CURTIS AC |
| 7.2 | Noise level at operator‘s ear | 70 | 70 | |
| 7.3 | Steering type | Mechanical | Mechanical |
|
|
