| Brand Name : | JAC FORKLIFT |

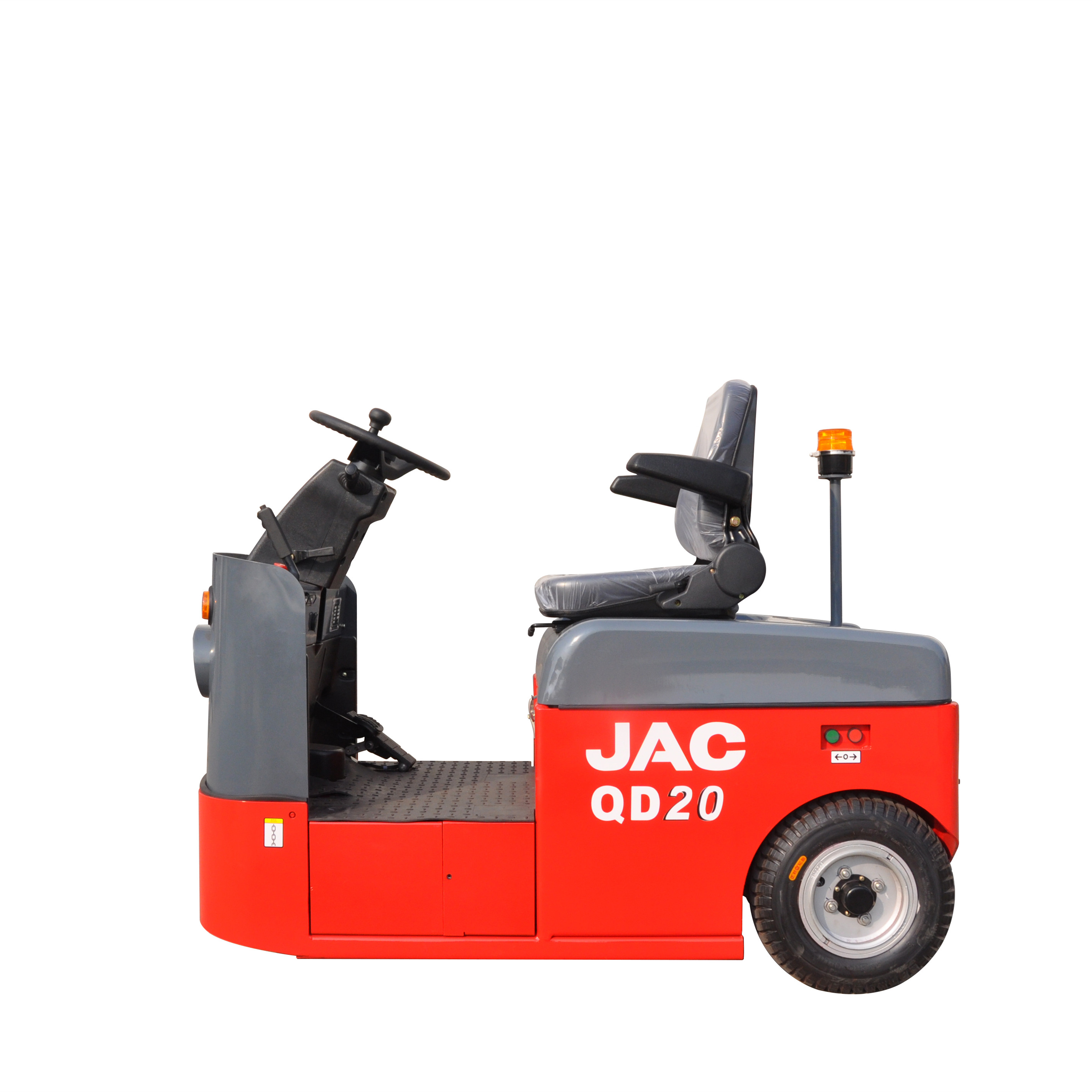

| Model Number : | QD20-80 |
| Model | Unit | QD20S1 | QD30S1 | QD45S1 | QD60S1 | QD80S1 |
| Powe type | Battery | |||||
| Drive type | Seat type | |||||
| Rated load | kg | 2000 | 3000 | 4500 | 6000 | 8000 |
| Drawbar height | mm | 303 | ||||
| Weight (with battery) | kg | 740 | 780 | 900 | 980 | 1080 |
| Overall length | mm | 1685 | 1845 | 1895 | ||
| Overall width | mm | 800 | ||||
| Overall height | mm | 1236 | ||||
| Minimum turning radius | mm | 1600 | 1760 | 1740 | ||
| Minimum right angle aisle width | mm | 1800 | 1960 | 1950 | ||
| Maximum travel speed/Full load | km/h | 6 | ||||
| Maximum travel speed/No load | 13 | |||||
| Tire type (FR/RR) | Pneumatic | |||||
| Front wheel | Φ294×99 | |||||
| Rear wheel | Φ415×112 | |||||
| tyre quantity | 1x /2 | 2x /2 | ||||
| Battery Voltage/capacity | V/Ah | 48/165 | 48/195 | 48/220 | 48/275 | 48/350 |
| Motor/Traveling | KW | 1.95 | 4.28 | 8 | ||
|
|
