Since the company established, JAC Heavy Duty persists the value “Customer-Orient Operation; Quality-driven Performance; Down-to-earth Approach”, the mission “Create Customer Value; Guard Employee
4 Years
| Ask Lasest Price | |

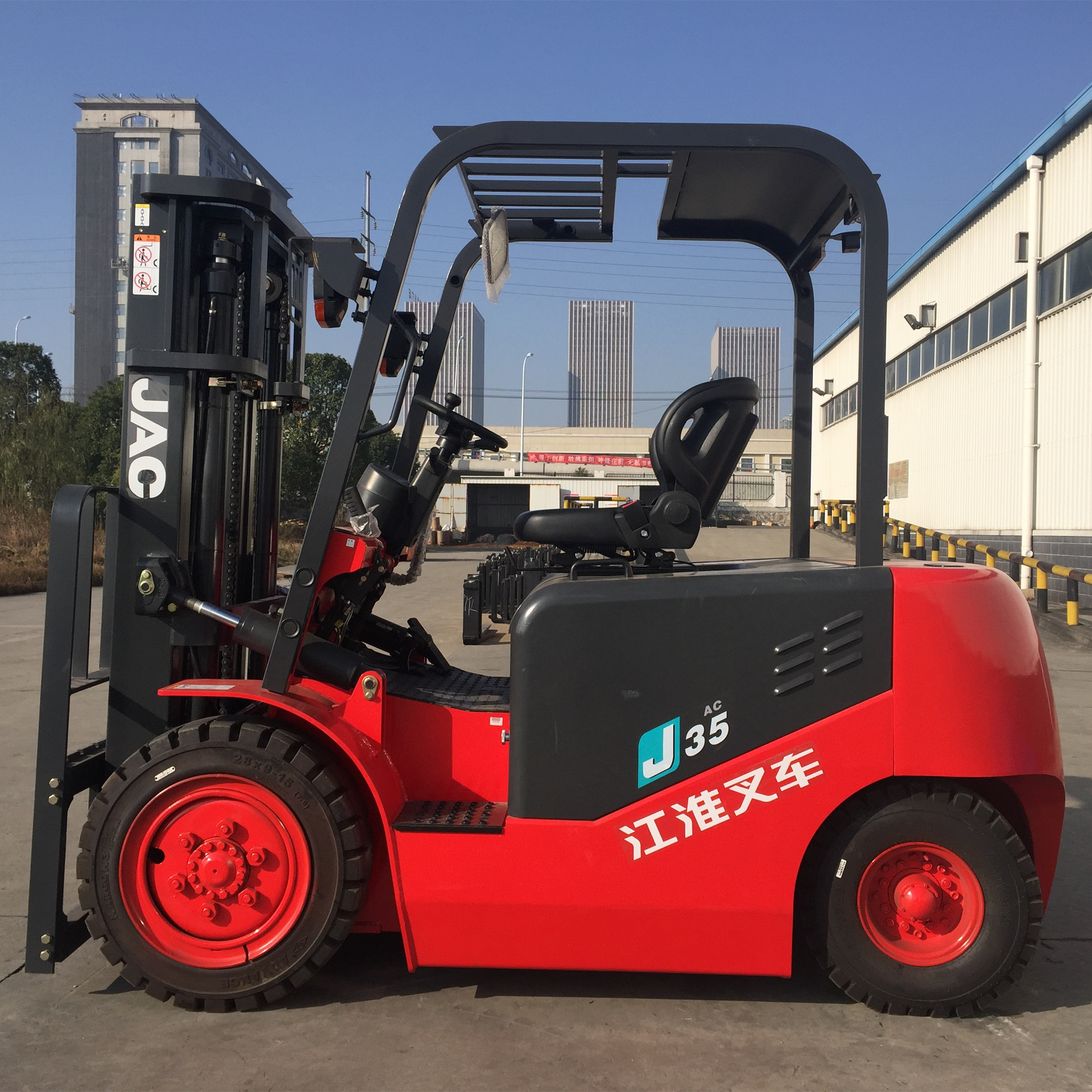

| Brand Name : | JAC FORKLIFT |
| Model Number : | CPD25J |
| Model | Unit | CPD30J | CPD35J | |
| Powe type | Battery | |||
| Rated load | kg | 3000 | ||
| Load center distance | mm | 500 | ||
| Lift height | mm | 3000 | ||
| Fork size | mm | 1070×125×45 | 1070×125×50 | |
| Minimum turning radius | mm | 2497 | 2520 | |
| Maximum travel speed/Full load | km/h | 12 | ||
| Maximum travel speed/No load | 13 | |||
| Fork height at maximum lift (with backrest) | mm | 4228 | ||
| Standard Mast height | mm | 2065 | 2120 | |
| Front wheel | 28×9-15-14PR | 28×9-15 | ||
| Rear wheel | 6.50-10-10PR | |||
| Tread Front wheel/rear wheel | mm | 1000/990 | ||
| Self weight Without load | kg | 4960 | 5400 | |
| Battery Voltage/capacity | V/Ah | 80/500 | 80/550 | |
| Motor/Traveling | KW | 16.6 | ||
|
|
