| Brand Name : | JAC FORKLIFT |

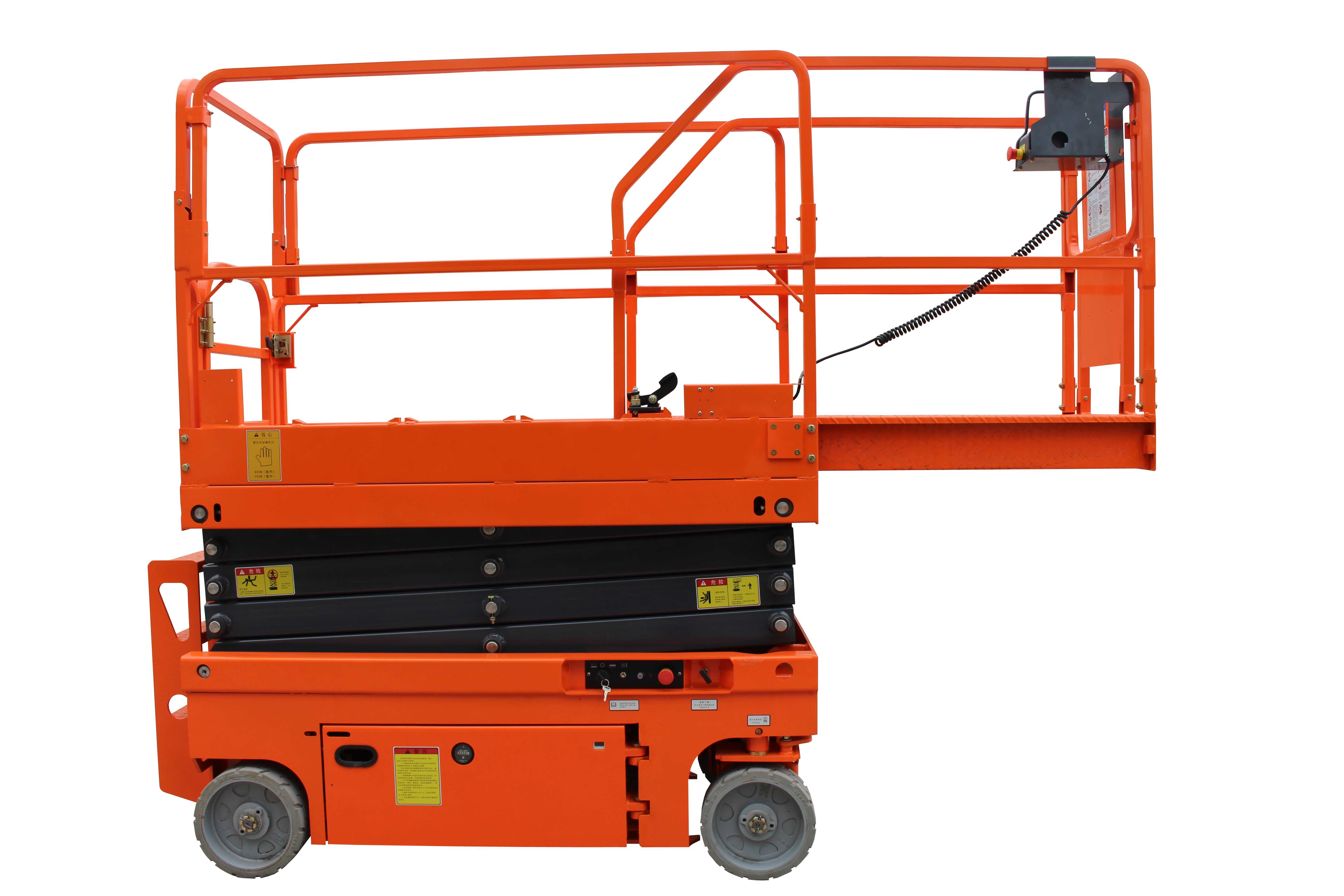

| Model Number : | Scissor Lift Aerial Work Vehicle |
| Modle | JS0812 | JS0812E | JS1012 | JS1012E | JS1212 | JS1212E | |
| Dmension | |||||||
| A1 Max.working height | m | 10 | 10 | 12 | 12 | 13.9 | 13.9 |
| A2 Max.platform height | m | 8 | 8 | 10 | 10 | 11.9 | 11.9 |
| B Overall length | m | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| C Overall width | m | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
| D Overall height(guardrall unfolded) | m | 2.3 | 2.3 | 2.46 | 2.46 | 2.60 | 2.60 |
| Hight stowed-rails folded | m | 1.71 | 1.71 | 1.84 | 1.84 | 1.98 | 1.98 |
| Platfor Size(length Χ width)(EXF) | m | 2.25x1.15 | 2.25x1.15 | 2.25x1.15 | 2.25x1.15 | 2.25x1.15 | 2.25x1.15 |
| Guardrail hight(G) | m | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| H Extension size of platform | m | 1 | 1 | 1 | 1 | 1 | 1 |
| I Ground clearance(retracted state) | mm | 95 | 95 | 95 | 95 | 95 | 95 |
| J Ground clearance(lifting state) | mm | 20 | 20 | 20 | 20 | 20 | 20 |
| K Wheelbase | m | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 |
| Performance | |||||||
| Max.number of workers(indoor/outdoor) | 2 / 1 | 2 / 1 | 2 / 1 | 2 / 1 | 2 / - | 2 / - | |
| Rated capacity | kg | 450 | 450 | 320 | 320 | 320 | 320 |
| Rated capacity of extension platform | kg | 120 | 120 | 120 | 120 | 120 | 120 |
| Drive speed(retracted state) | km/h | 0~3.2 | 0~3.2 | 0~3.2 | 0~3.2 | 0~3.2 | 0~3.2 |
| Drive speed(lifting state) | km/h | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 |
| Min.turning radius(inside) | m | 0 | 0 | 0 | 0 | 0 | 0 |
| Min.turning radius(outside) | m | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Lifting/Falling time | s | 32/35 | 32/35 | 52/48 | 52/48 | 52/52 | 52/52 |
| Max.work slop(forward and backward/left andright) | ° | 3°/1.5° | 3°/1.5° | 3°/1.5° | 3°/1.5° | 3°/1.5° | 3°/1.5° |
| Max.allowable wind speed (indoor/outdoor) | m/s | 0/12.5 | 0/12.5 | 0/12.5 | 0/12.5 | 0/0 | 0/0 |
| Max.allowable wind speed(indoor/outdoor) | N | 400/200 | 400/200 | 400/200 | 400/200 | 400/0 | 400/0 |
| Gradeability | % | 30% | 30% | 25% | 30% | 25% | 30% |
| Controls type | Proportional control | Proportional control | Proportional control | ||||
| Drive | Dual fornt wheels | Dual fornt wheels | Dual fornt wheels | Dual fornt wheels | Dual fornt wheels | Dual fornt wheels | |
| Brake | Dual front wheels | Dual fornt wheels | Dual front wheels | Dual fornt wheels | Dual front wheels | Dual fornt wheels | |
| Tyres size | mm | 381x129 | 381x129 | 381x129 | 381x129 | 381x129 | 381x129 |
| Power | |||||||
| Lifting/driving motor power | kw | 3.3 | 3.3/0.7x2 | 3.3 | 3.3/0.7x2 | 4.5 | 3.3/0.7x2 |
| Battrey voltage/capacity | V/Ah | 6x4/180 | 6x4/180 | 6x4/180 | 6x4/180 | 6x4/240 | 6x4/240 |
| Charger input voltage | VAC | 100-240 | 100-240 | 100-240 | 100-240 | 100-240 | 100-240 |
| Charger output current | A | 36 | 36 | 36 | 36 | 36 | 36 |
| Controls voltage | VDC | 24 | 24 | 24 | 24 | 24 | 24 |
| Hydraulic tank capacity | L | 22 | 22 | 22 | 22 | 22 | 22 |
| Overall weight | kg | 2460 | 2460 | 2820 | 2820 | 2950 | 2950 |
|
|
