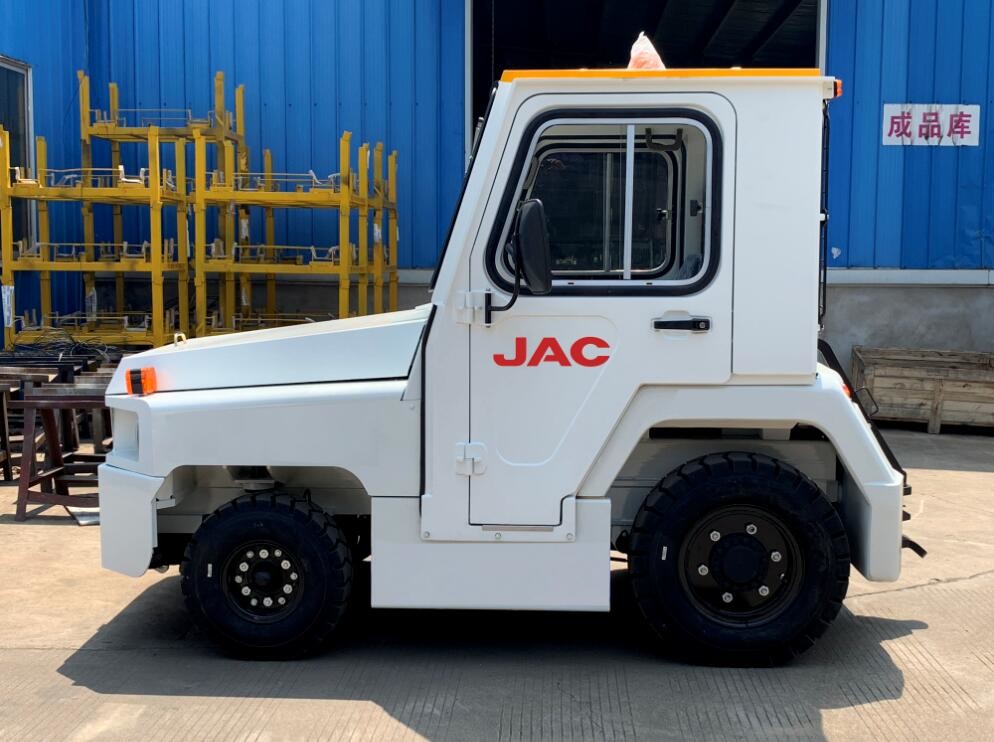

    84dB Diesel Cab Industrial Tow Tractor For Aircraft QCD20/25

    Diesel Cab Industrial Tow Tractor For Aircraft QCD20/25


    Features


    1. S4S four-cylinder in-line diesel engine originally imported from MITSUBISHI Corporation of Japan is selected.

    2. Low vehicle noise, noise less than 84dB at the highest speed.

    3. The braking system consists of front and rear four-wheel hydraulic service brake and mechanical parking brake acting on the driving wheel.

    4. The whole vehicle is equipped with light systems such as near and far light headlights, front and rear turn signals, rear combined lights (steering, braking, tail lights) and rear operation lights, which fully meet the needs of traction operations at night and in areas with insufficient light.

    84dB Diesel Cab Industrial Tow Tractor For Aircraft QCD20/25


    Model code QCD20QCD25
    Max. drawbar pullKN2026
    PerformanceMax. towed weight (at dry even concrete surface)With one trailerKg2600031500
    Traveling speedForwardKm/h2828
    BackwardKm/h2222
    Max. grade abilityNo load%3838
    DimensionsOverall length (with coupler)mm30853066
    Overall widthmm14401452
    Overall heightmm14201996
    Wheelbasemm16001609
    Front overhangmm640624
    Rear overhang (with coupler)mm845833
    Front treadmm12601263
    Rear treadmm11901200
    Min.户turning radiusOutermm35002880
    Floor heightmm425425
    Center height couplermm305/450305/450
    Min. ground clearancemm130151
    tiresTire sizeFront 6.50-10-10 PR6.50-10-10 PR
    Rear 7.00-15-12PR7.00-15-12PR
    WeightTruck weight (No load)Kg3100/34003590
    Weight distributionFront axleKg1080/10401020
    Rear axleKg2020/23602570
    EngineModel JX493ZG3Japan Mitsubishi S4S
    Displacementcm327713331
    Rated outputKW/rpm64/300047/2500
    Rated torqueNM/rpm243/1800200/1600
