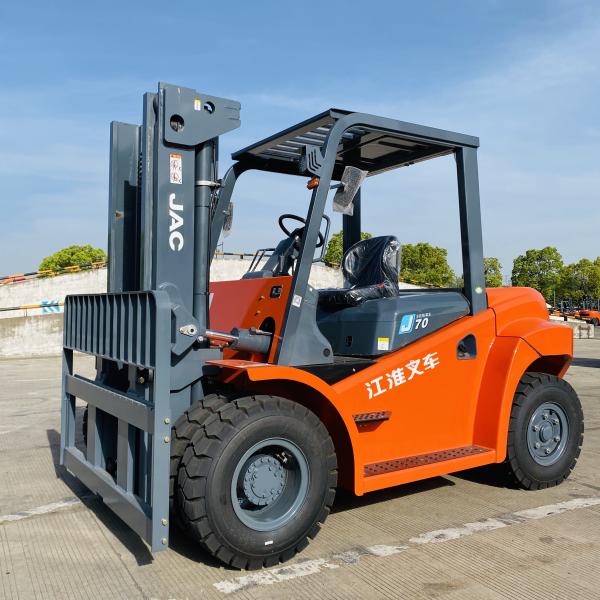

Diesel Forklift (8-10T Forklift Truck, H Series)/ JAC /
Product description
The hydraulic drive system of H series diesel forklift provides
stable and efficient driving effect.
The hyperbolic design for the main reducer of drive axle helps
realize smooth meshing. Apart from the low noise, this design
extends the lifespan of the drive axle, as well.
Eco-friendly, the hood of the 5-7T forklift truck is installed with
built-in heat-insulated and sound absorbing material. The gap is
filled with rubber to absorb vibration and reduce noise during
operation.
Diaphragm type clutch pressure plate and the patented shift fork
enable convenient operation of the clutch.
Features
1. Our diesel forklift is meticulously designed according to
ergonomics, which effectively enlarges the working space and
minimizes the fatigue of the operator.
2. Thanks to the drum brake, the sensitive braking effect of the
heavy-duty forklift truck makes this product particularly safe and
reliable for use..
.
3. The natural and simple design of the balance weight eliminates
the influence on the appearance caused by deformation of the side
hood..
4. The storage battery box can be opened from its side for
outstanding waterproofness and maintainability.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD50J | CPCD60J | CPCD70J | CPCD80J | CPCD100J |
| Power type | Diesel | |||||
| Rated load | kg | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load center distance | mm | 600 | ||||
| Lift height | mm | 3000 | ||||
| Free lift height | mm | 172 | 182 | 150 | ||
| Fork size L×W×T | mm | 1220×150×60 | 1220×150×70 | 1220×150×80 | 1370×175×85 | |
| Minimum turning radius | mm | 3580 | 4280 | |||
| Maximum travel speed /Full load | km/h | 22 | 20 | |||
| Maximum travel speed/ No load | km/h | 25 | 24 | |||
| Fork height at maximum lift (with backrest) | mm | 4415 | 4280 | |||
| Standard Mast height | mm | 2510 | 2845 | |||
| Front wheel | 8.25-15-14PR | 8.25-15-18PR | 9.00-20-14PR | |||
| Rear wheel | 8.25-15-14PR | 8.25-15-18PR | 9.00-20-14PR | |||
| Wheelbase | mm | 2300 | 2800 | |||
| Front wheel/rear wheel | mm | 1520/1700 | 1600/1700 | |||
| Self weight/Without load | Kg | 8760 | 9530 | 9970 | 10300 | 13640 |
| Battery/ Voltage/capacity | V/Ah | 24/160 | ||||
| Engine/ Model | YC4A125-T300 Yuchai,China | |||||
| Engine/Rated output | kw/r.p.m | 92/2200 | ||||
| Engine/ Rated torque | Nm/r.p.m | 180/1600-1800 | ||||
| Tire type (FR/RR) | Pneumatic | |||||
| Number of wheels (FR/RR) | 4/2 | |||||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
