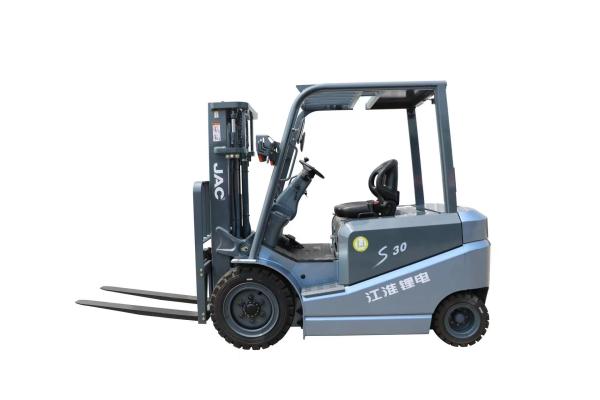

Electric Forklift(4-6T Four Wheel Forklift, S Series)
Product description
CPD45S/CPD50S/CPD60S electric forklifts have the advantages of
short braking time and low energy consumption. They are equipped
with wet-type multi-disk brake which is very durable and provides
excellent braking effect. These electric forklifts use integral
drive design that their gearbox oil can lubricate gears to reduce
the maintain cost. These electric forklifts use lithium battery as
power source. In addition, they have power regeneration function to
prolong the service time that it recovers the electric quantity of
battery when the electric forklift is braking, slowing down or
steering.
Features
1. The integrated drive axle and gearbox structure ensures high transmission efficiency and low noise.
2. Wet-type multi-disk brake is very durable and provides excellent braking effect..
3. This electric forklifts uses lithium battery as power source. The power regeneration function prolongs its working time which enables recovery of electric quantity when the electric forklift is braking, slowing down or steering.
4. The meter real-time displays steering angle to let the driver know the tire direction. When its speed is more than 5km/h and steering angle is over the set value, the electric forklift will automatically limit the speed to ensure the safety.
5. Hydraulic system uses 24° cone O-ring seal which provides
reliable sealing and avoids leakage.
Technical Parameters of Diesel Forklift
| Model | Unit | CPD45S | CPD50S | CPD60S | |
| Powe type | Battery | ||||
| Rated load | kg | 4500 | 5000 | 6000 | |
| Load center distance | mm | 500 | 500 | 600 | |
| Lift height | mm | 3000 | |||
| Fork size | mm | 1220×150×50 | 1220×150×50 | 1220×150×60 | |
| Minimum turning radius | mm | 2704 | 2704 | 2780 | |
| Maximum travel speed/Full load | km/h | 13 | 13 | 11.5 | |
| Maximum travel speed/No load | 14 | 14 | 14 | ||
| Fork height at maximum lift (with backrest) | mm | 4270 | 4270 | 4280 | |
| Standard Mast height | mm | 2245 | 2245 | 2345 | |
| Front wheel | 28×12.5-15 | ||||
| Rear wheel | 7.00-12 | ||||
| Tread Front wheel/rear wheel | mm | 1200/1130 | |||
| Self weight Without load | kg | 7400 | 7800 | 8950 | |
| Battery Voltage/capacity | V/Ah | 80/700 | 80/720 | 80/720 | |
| Motor/Traveling | KW | 11×2 | |||
